1989 pre-diversion handle bars mod question

Discussion in 'XJ Modifications' started by george4765, Jan 20, 2013.

  1. george4765

    george4765 New Member

    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    1
    Has anybody tried to mod or know how to mod the handle bars on this bike? I would like to raise the handle bars but have no idea if this can be done! Any help appreciated.

  2. bensalf

    bensalf Well-Known Member

    Messages:
    1,353
    Likes Received:
    281
    Trophy Points:
    83
    Location:
    yorkshire ,england
    i assume its a european xj600?
    if so its not easy as the bottom of the fixed 2 piece handlebars have a course serrated fixing.
    the only way i can see, is to fit some universal handlebar raisers like this
    http://www.busters-accessories.co.uk/pr ... bar-Risers
    then fit some one piece handlebars to the raisers.
    you would need some deep "u" shaped bars to raise them more than the originals

    you would also need to check the extra length needed on the cables , wiring and brake hose.
    stu

  3. george4765

    george4765 New Member

    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    1
    My bars are clip ons and. Need to get them high up but cannot find anything that will marry up to them . Been searching the web nowt there. Thank for help cheers mate. George

  4. bensalf

    bensalf Well-Known Member

    Messages:
    1,353
    Likes Received:
    281
    Trophy Points:
    83
    Location:
    yorkshire ,england
    clip ons ?? on a 89??
    so are they aftermarket ones, does the top yolk have mounting points on it .
    some pic's would help
    stu

  5. george4765

    george4765 New Member

    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    1

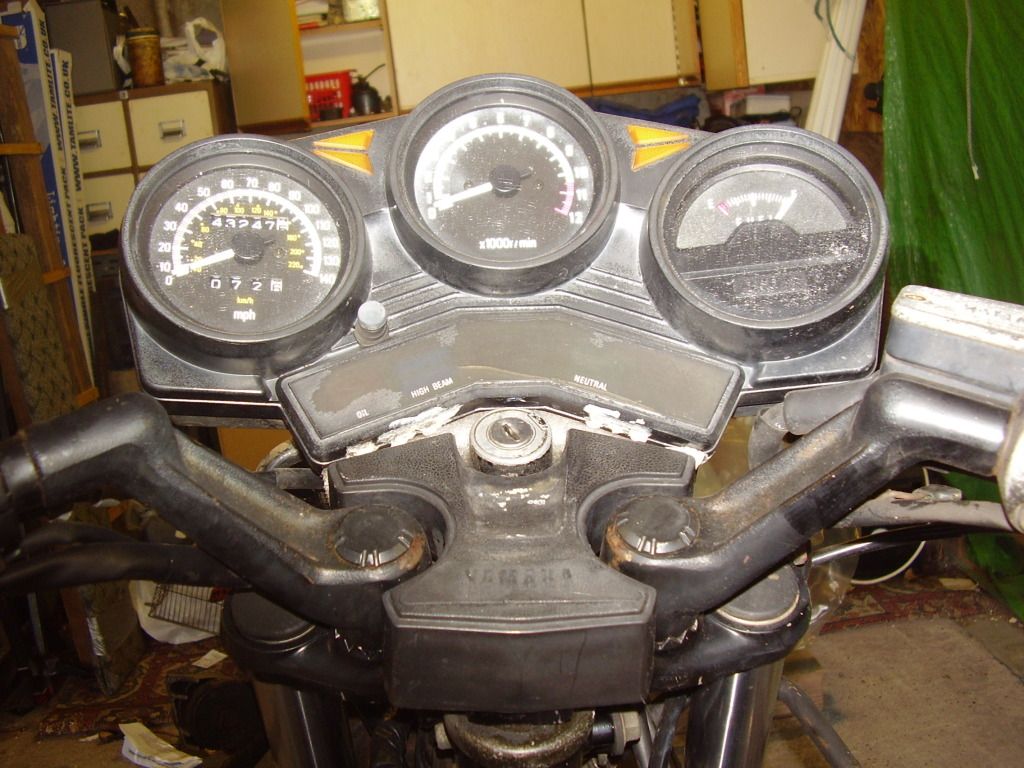

    Its a European bike and the handlebars are fixed each side (2 piece assembly) into a serrated type bracket that locks each handlebar into position. Just checking if any one else out there had managed to find an alternative handlebar solution. Will post pics tomorrow. George

  6. bensalf

    bensalf Well-Known Member

    Messages:
    1,353
    Likes Received:
    281
    Trophy Points:
    83
    Location:
    yorkshire ,england
    they're not clip ons as such, they are the standard fitting

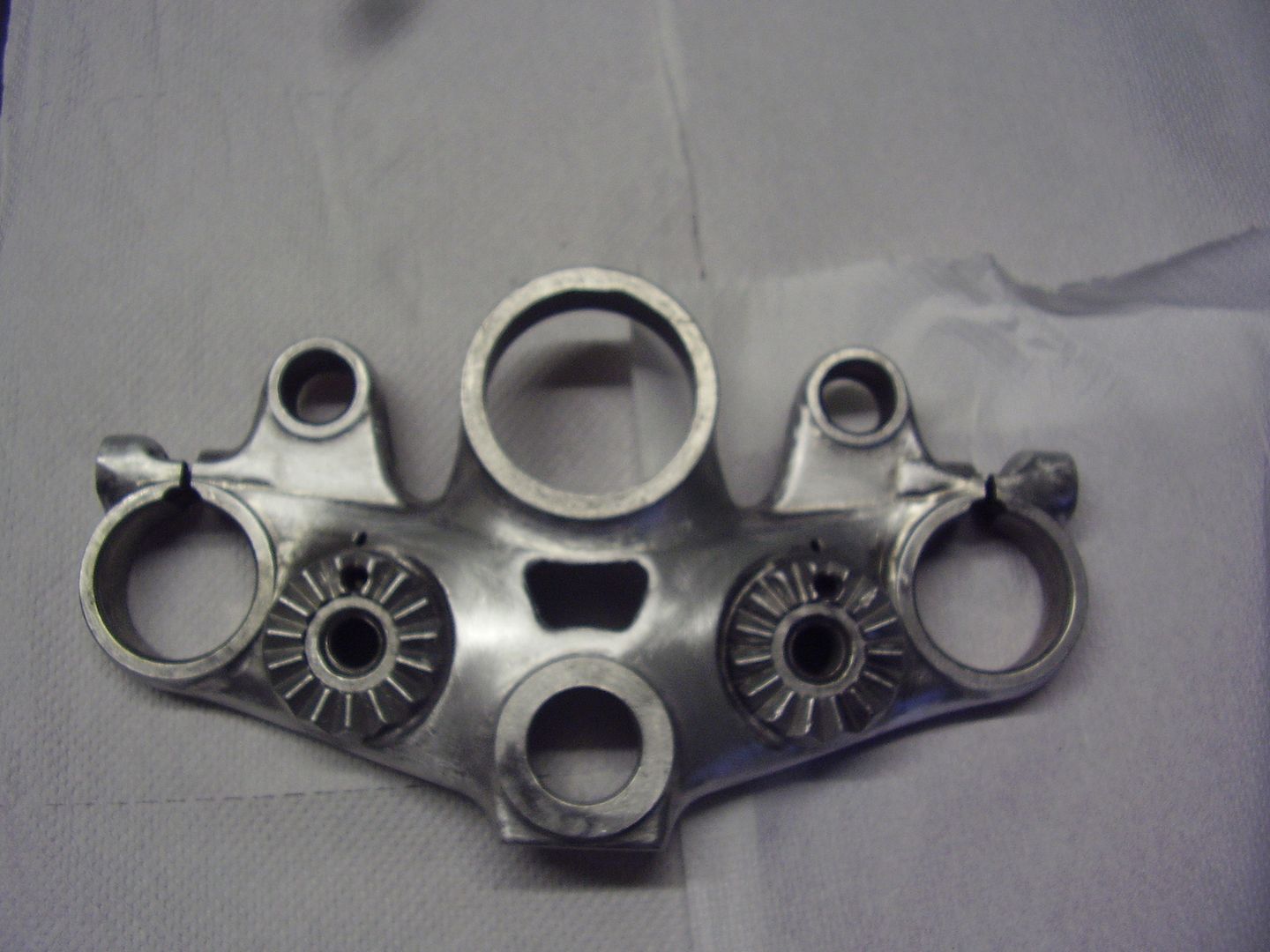

    [​IMG]
    if they're like this, then answer is as i said above
    stu

  7. TIMEtoRIDE

    TIMEtoRIDE Active Member

    Messages:
    4,686
    Likes Received:
    11
    Trophy Points:
    38
    Location:
    Clermont FL near Orlando
    I'm thinking a couple longer bolts and a couple "pucks" cut from 1" marine grade plywood, or Polyurethane shock bushings.

    ( I want a 10,500 redline ! )

  8. bensalf

    bensalf Well-Known Member

    Messages:
    1,353
    Likes Received:
    281
    Trophy Points:
    83
    Location:
    yorkshire ,england
    ---------------------------------------------------------------------------------
    I'm thinking a couple longer bolts and a couple "pucks" cut from 1" marine grade plywood, or Polyurethane shock bushings.
    ---------------------------------------------------------------------------------
    yep, suppose that could be a solution, but the serrations would have to bite into the spacer material quite a lot , other wise the bars would tend to spin on heavy braking ,or when maouvering bike.
    i still think it could be a fix ,by fitting raisers and one piece bars.
    stu

  9. XJE

    XJE New Member

    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Ontario
    sorry to wake an old thread, but ever find a solution to a 1 piece bar setup? I have a 2 piece setup just like this one.

    appreciate any help,
    thank you

  10. bensalf

    bensalf Well-Known Member

    Messages:
    1,353
    Likes Received:
    281
    Trophy Points:
    83
    Location:
    yorkshire ,england
  11. hogfiddles
