Hitachi carb pictures

Discussion in 'XJ Technical Chat' started by mrcarb, Mar 25, 2008.

  1. mrcarb

    mrcarb Member

    Messages:
    163
    Likes Received:
    0
    Trophy Points:
    16
    Does this site have any pictues of Hitachi carbs showing the jet locations?

    mrcarb, Mar 25, 2008
    #1
  2. Kenbo

    Kenbo Member

    Messages:
    157
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    Central Scotland

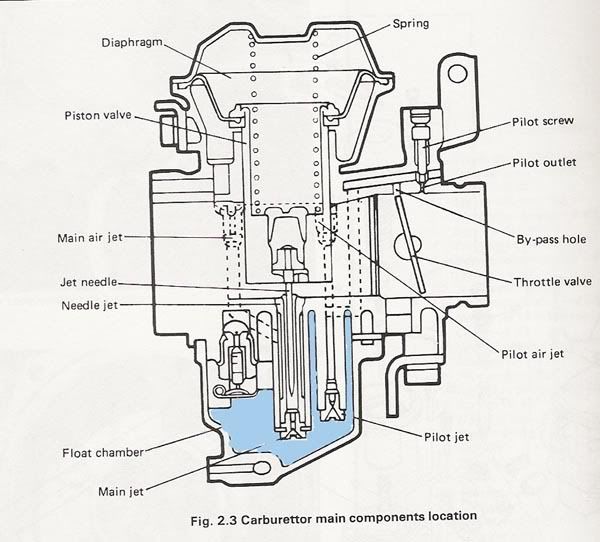

    What do you mean like this?

    [​IMG]

    Kenbo, Mar 25, 2008
    #2
  3. mrcarb

    mrcarb Member

    Messages:
    163
    Likes Received:
    0
    Trophy Points:
    16
    Actually I meant a picture of the jets themselves in the carbs so I can see the numbers to make sure I get them back in the right location.

    My Grandfather is from Karnoustie, if I spelled that right.

    mrcarb, Mar 26, 2008
    #3
  4. schmuckaholic

    schmuckaholic Well-Known Member

    Messages:
    2,260
    Likes Received:
    42
    Trophy Points:
    48
    Location:
    California
    Okay, are we talking about the jets in the fuel bowl, or underneath the diaphragm?

    If you happen to have the Haynes manual, they've got pictures of the jets -- just be aware that they got the labels on the air jets backwards.

    schmuckaholic, Mar 26, 2008
    #4
  5. chacal

    chacal Moderator Moderator Supporting Vendor Premium Member

    Messages:
    9,159
    Likes Received:
    1,971
    Trophy Points:
    113
    Location:
    The room where it happened
    The above diagram is almost perfect, all it is missing in the starter jet (in the float bowl) and the starter/enrichment/choke circuit tube and internal path.

    If anyone is good at photoshop, can you take a whack at adding those features?

    chacal, Mar 26, 2008
    #5
  6. Alive

    Alive Active Member

    Messages:
    1,291
    Likes Received:
    15
    Trophy Points:
    38
    Location:
    Queensland, Australia
    Alive, Mar 26, 2008
    #6
