ignition switch removal ? w.t.f.?

so , im in the process of rebuilding an xj600 into a cafe racer, im dismantling it today, and tried to remove the ignition switch from the triple tree, acording to the haynes manual it should be held on with 2x 6mm bolts from underneath. but all i can see is 2 cone shaped nuts. are these "shear nuts", i will be removing the tripple tree top yolk later, so is it a case of chiseling the nuts off, i cant find any referance to the nuts, but i will be discarding the switch and replacing it with a credit card type ignition reader placed under the seat area.
cheers all
stu.



Hi,I ended up smashing my old one off,only to find the securing bolts were TORX heads,couldnt see them properly,as its a bit tight in there!
Buzz



somebody else has been in there.......

Dave



What's this ignition system you're putting on?



----------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
What's this ignition system you're putting on?
--------------------------------------------------------------------------------------
not a system really, just an electronic card reader to replace the ignition switch, bought from local electronic store (maplins) for £5. Its supplied with 3 cards (credit card size). it works from 9volts ,so i've put a voltage regultor in line with it,when you put the card in the slot it reads the card and then makes a pair of contacts, which i have wired through a relay to turn on the ignition.
had it working ok on the bench, i've yet to instal it on the bike



sounds interesting....more info please..... do a how to



How robust and what's expected longevity of the magnetic stripe?



its not a magnetic stripe, its 2 infra red led's that read 2 white spots on the black cards. the only problem is they are all the same, so anyone else buying the same card reader has the same card spots, so the manufacturers have made the led mount movable by jacking 2 screws in, you trim the card off a little, so only your card matches the led positions.
the card readers are now discontinued at maplins so i bought 2.
if anyone needs to know more i'm sure there will be other retailers that stock similar products
i can do photos and a diagram if anyone is interested, but as i said its still on the bench ,as the bike's in bits
cheers
stu.



I am interested. Kinda takes "custom" to a deferent level.



I've been thinking about doing something similar, but with rfid, which will be similar to a chipped car key that will only allow keys that have been added to the list to be used.
ELECTRONIC TRANSPONDER WITH 2 RFID KEYFOB TAGS



Interesting idea, but doesn't that get rid of the steering lock? somebody could just roll your bike away ...



I was thinking of doing mine in addition to the regular keyed ignition, which would retain the steering lock. Probably in the neutral switch circuit somewhere.



yes thats right the steering lock would no longer operate, thats why in britain we all use chains and disclocks.
steering locks are a bit naff anyway, and can easily be broken. the ignition key position was in the way for me to mount my acewell dash, so i had to move it anyway.
i'll do write up when i get back from a trip
cheers stu



just FYI - the voltage can surge past 15V in use.



yes, cheers "timetoride.
the voltage regulator i mentioned, is a small electronic device that will check any voltage up to 35v, and reduce it to whatever voltage range you picked.
in my case 9v ,but they're also available from 3v up to 12v.
ideal for supplying led's instead of resistors.
cheers
stu



cool project, let us know how it goes!

i like the rfid fobs, so you can just leave it in your pocket like on some new cars. as long as its with you ou can open the doors and start the car without ever even getting it out of your pocket!



ok, if anyones interested in the system i will be installing on the bike ,when its built. this is the system


i've made a small box to mount the face of the reader in, and to stop the card from falling out.
the box has a spring hinged lid

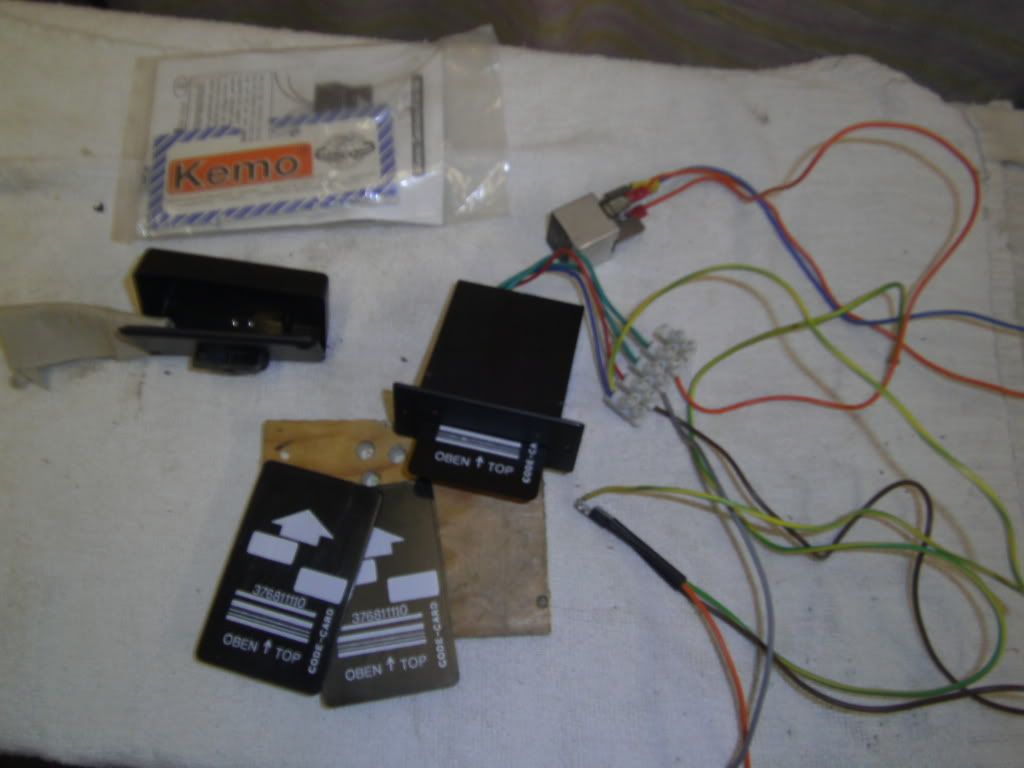

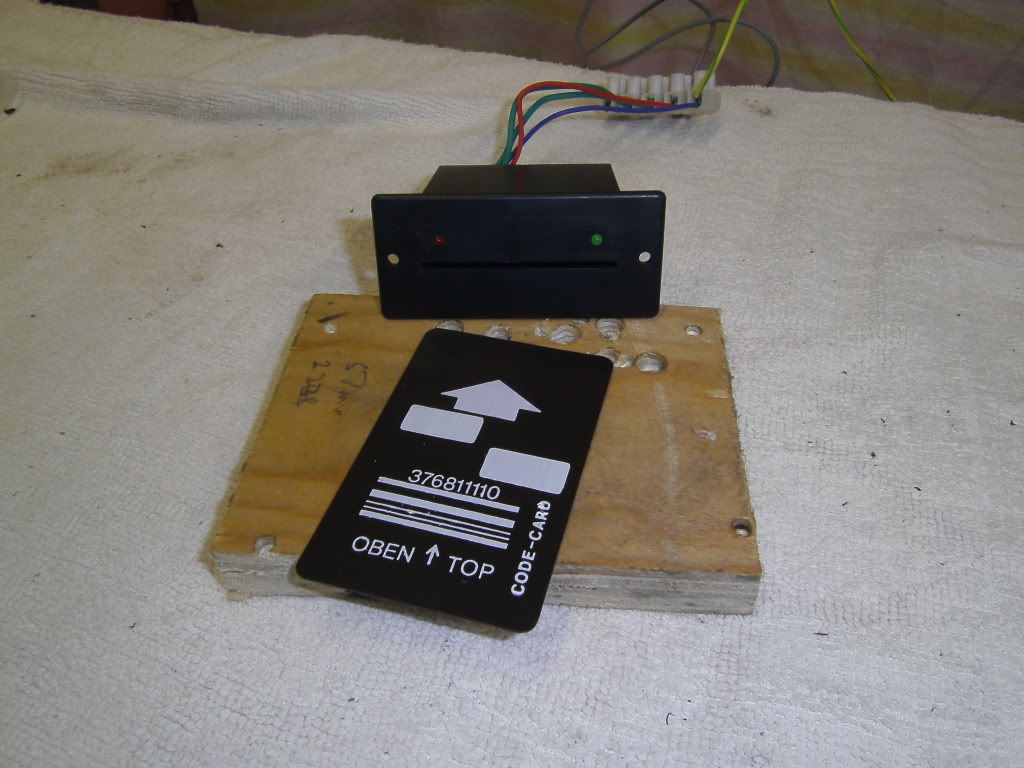

this is the card reader and card.

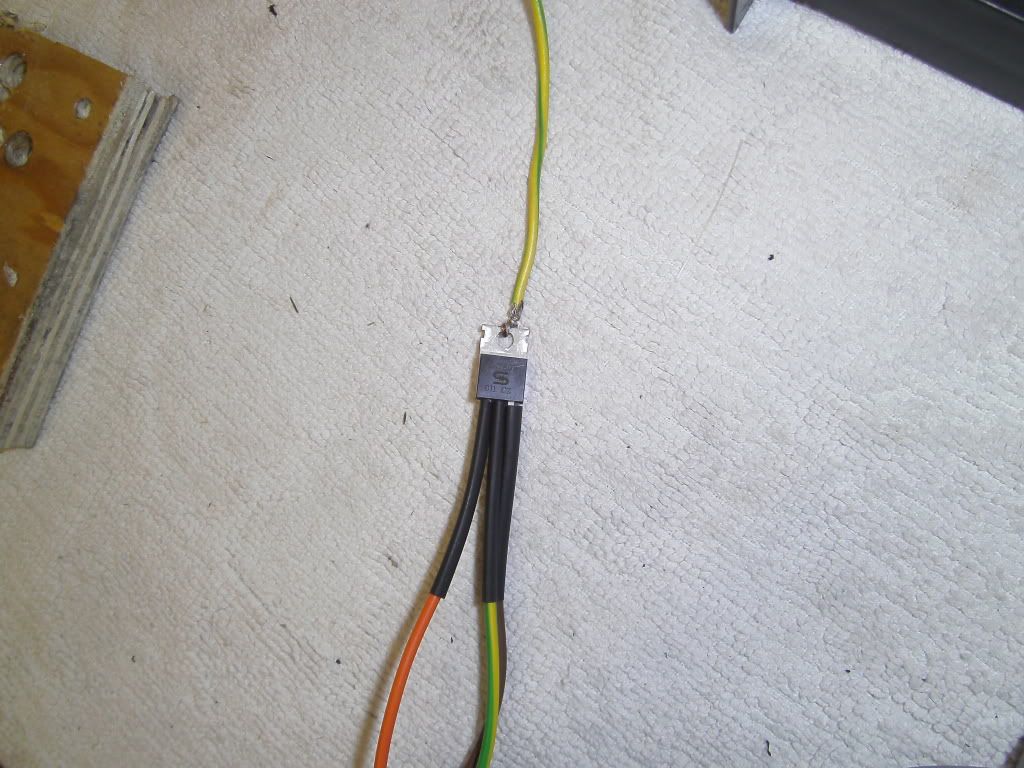

this is the 9v voltage regulator, i've soldered the wires on, but they will be changed for the correct colour when installed.

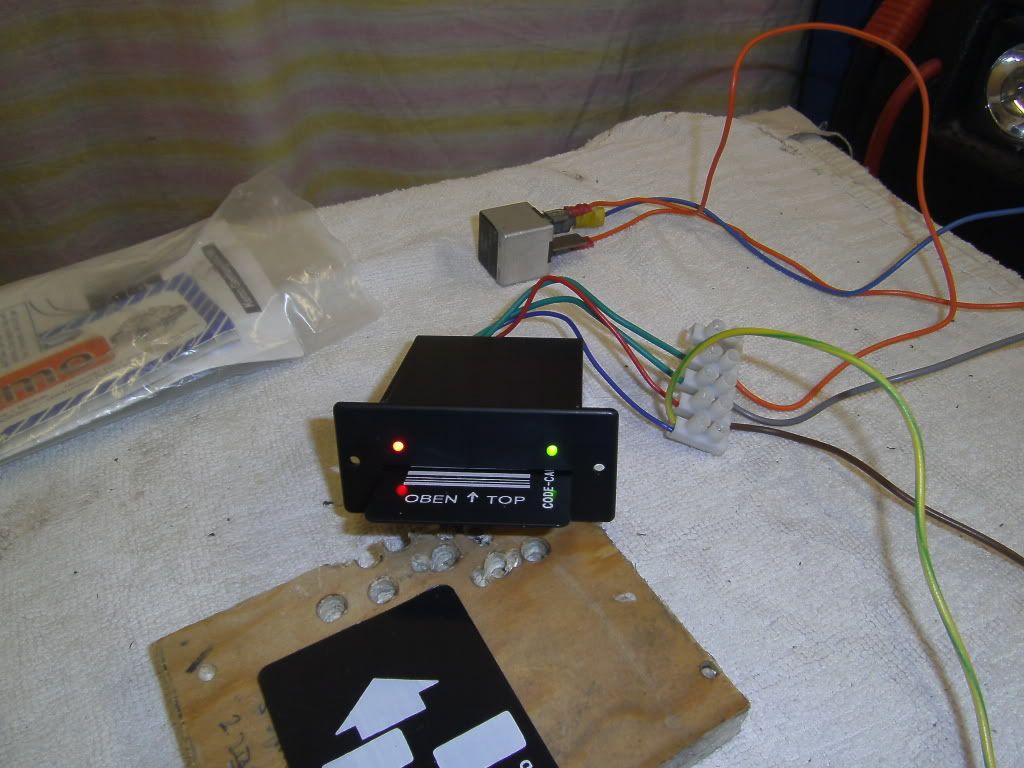

this is card reader powered up from 12v via 9v regulator, red light shows "no card"-------and



rred with green light shows correct card inserted.

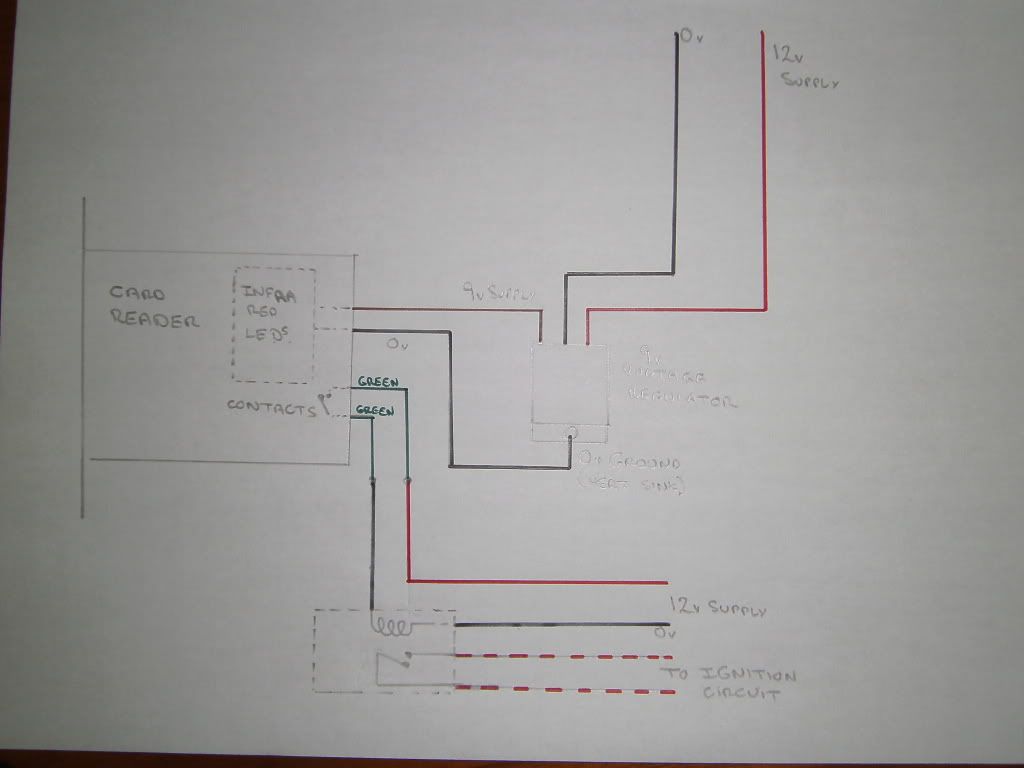

diagram, wire colours on bench test dont all corespond to diagram, but they will later.


edit..
dotted box at bottom of diagram is a 40a automotive relay



You should go to instructable.com do a how to. This is very interesting.



cheers Razz.
anyway ,back to my original post.

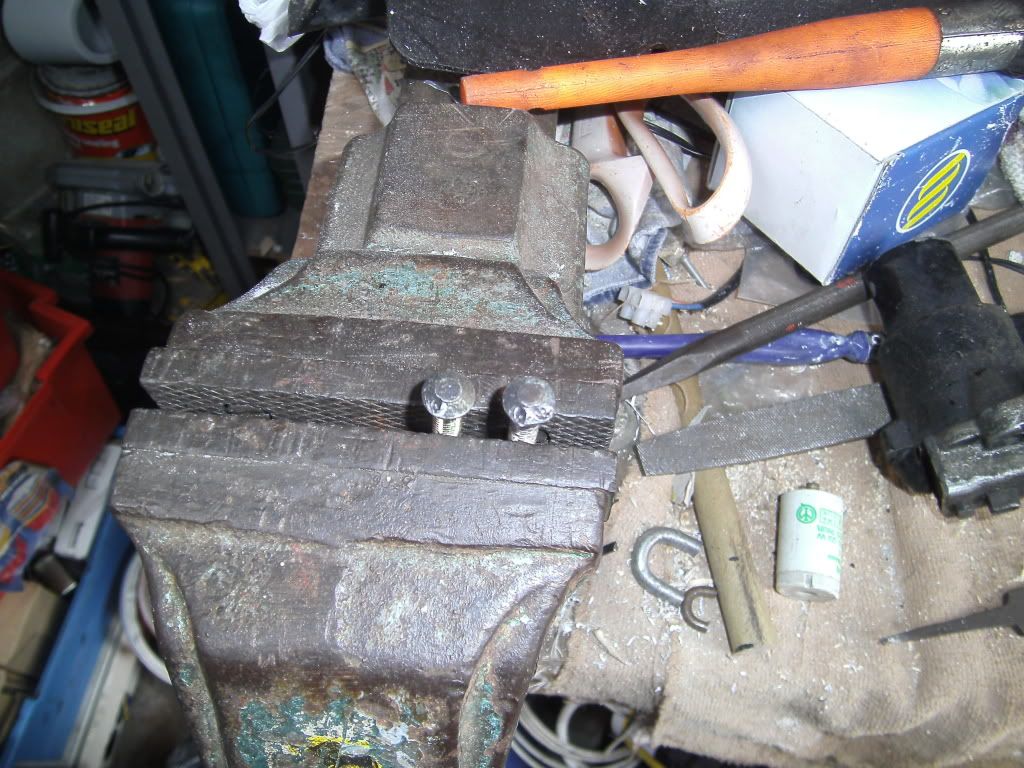

removed the triple tree top yolk today, and deffo the ignition switch is held on with 6mm shear bolts, and they apear to be a factory fitting



managed to get them loose with a dot punch and hammer ok
